Extended-linkage high-temperature interlock

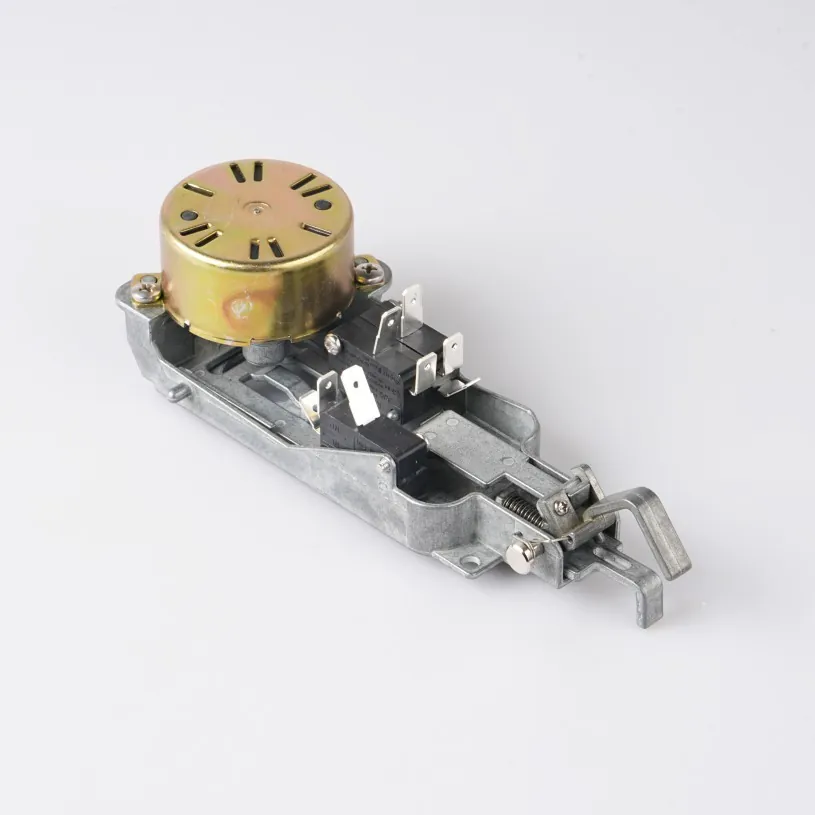

Oven Door Lock
An extended-linkage lock architecture for mechanical adaptation across oven cavities and mounting positions.
Public data revised · 2026-09-09
APPLICATION & DATA
European oven platforms
Public selection data. Voltage, frequency, output, mounting and leads are confirmed by model and approved drawing.
- Rated voltage
- 110-130 / 220-240 V AC
- Frequency
- 50/60 Hz
- Output speed
- 1.652 rpm (50 Hz) / 1.982 rpm (60 Hz)
- Output torque
- 8(125°) / 12(25°) kgf·cm
- Direction
- CW
- Service life
- ≥100,000 cycles
DRAWINGS & PROJECT DOCUMENTS
Confirm fit, interfaces & validation
Download the public specification above. Request mounting and terminal views, dimensional drawings, configuration options and applicable certificates for your model.
- Appliance location & available space
- Electrical & mechanical interfaces
- Load, life & test conditions
- Target market & customer standards
Start with the application. Co-engineer the next appliance component.
