01 / DISHWASHER SYSTEMS
Water routing, wash sensing, locking and spray delivery for critical dishwasher motion, hydraulic and safety functions.
CHOOSE A SOLUTION
SYSTEM VALUE
Functional application guide. Confirm location, mounting, load and interfaces against the appliance design.
| Component | Application / function | Selection constraints |
|---|---|---|
| Diverter Valve Series | Dishwasher water routing | Working voltage: 195-240 V · Output speed: 4±0.03 rpm · Output torque: >50 N·cm |
| Synchronous Motor with Lead Wire | Dishwashers and fans | Rated voltage: 220-240 V · Output speed: 2.5/3.0 · 4/4.8 · 5/6 rpm |
| Dishwasher Door Lock | Smart dishwasher platforms | Rated voltage: 12 V DC · Rated current: 220 mA · Output force: ≤80 N |
| Water-Tank Component Assembly | Integrated dishwasher sump assemblies | Rated voltage: 220-240 V · Frequency: 50/60 Hz · Rated current: ≤35 mA |
| Turbidity Sensor | Dishwashers | Operating voltage: 5 V DC · Extraction force: >5 N · Insulation resistance: >100 MΩ |
| Spray Arm | Dishwasher spray systems | Body material: Engineering polymer · Joining process: Hot-plate welding |
PRODUCT PORTFOLIO
Standard platform data shown below. Voltage, interfaces, mounting and output can be co-engineered for each program.
01.01Dishwasher water-routing components
ApplicationDishwasher water routing
Four configurations offer different housings, output shafts and mounting interfaces for dishwasher water routing. Confirm the configuration and appliance interfaces for each program.

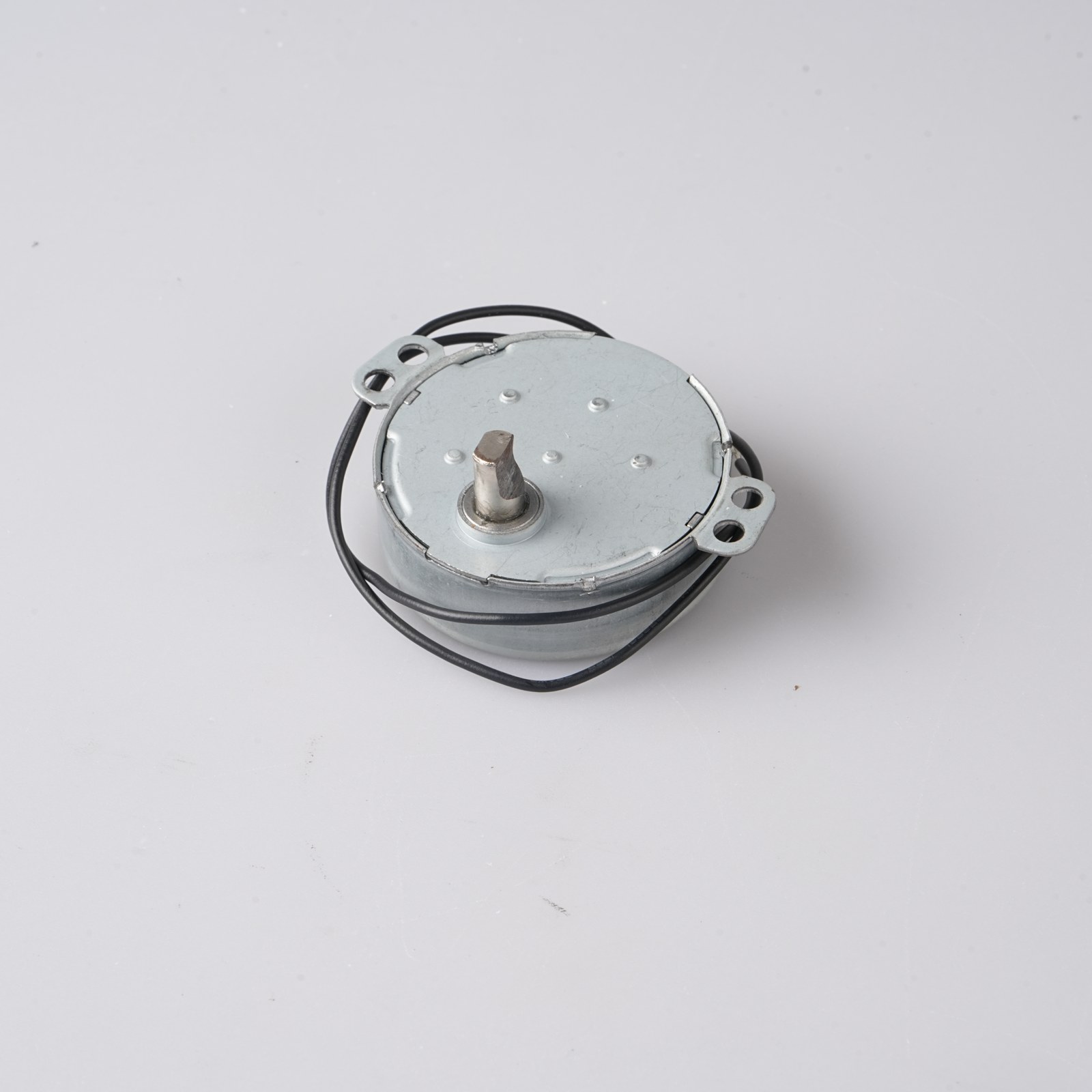

01.02Multi-speed synchronous drive platform
ApplicationDishwashers and fans
Lead-wire connection simplifies appliance wiring, with multiple low-speed outputs and bidirectional rotation for valves, dampers and related mechanisms.

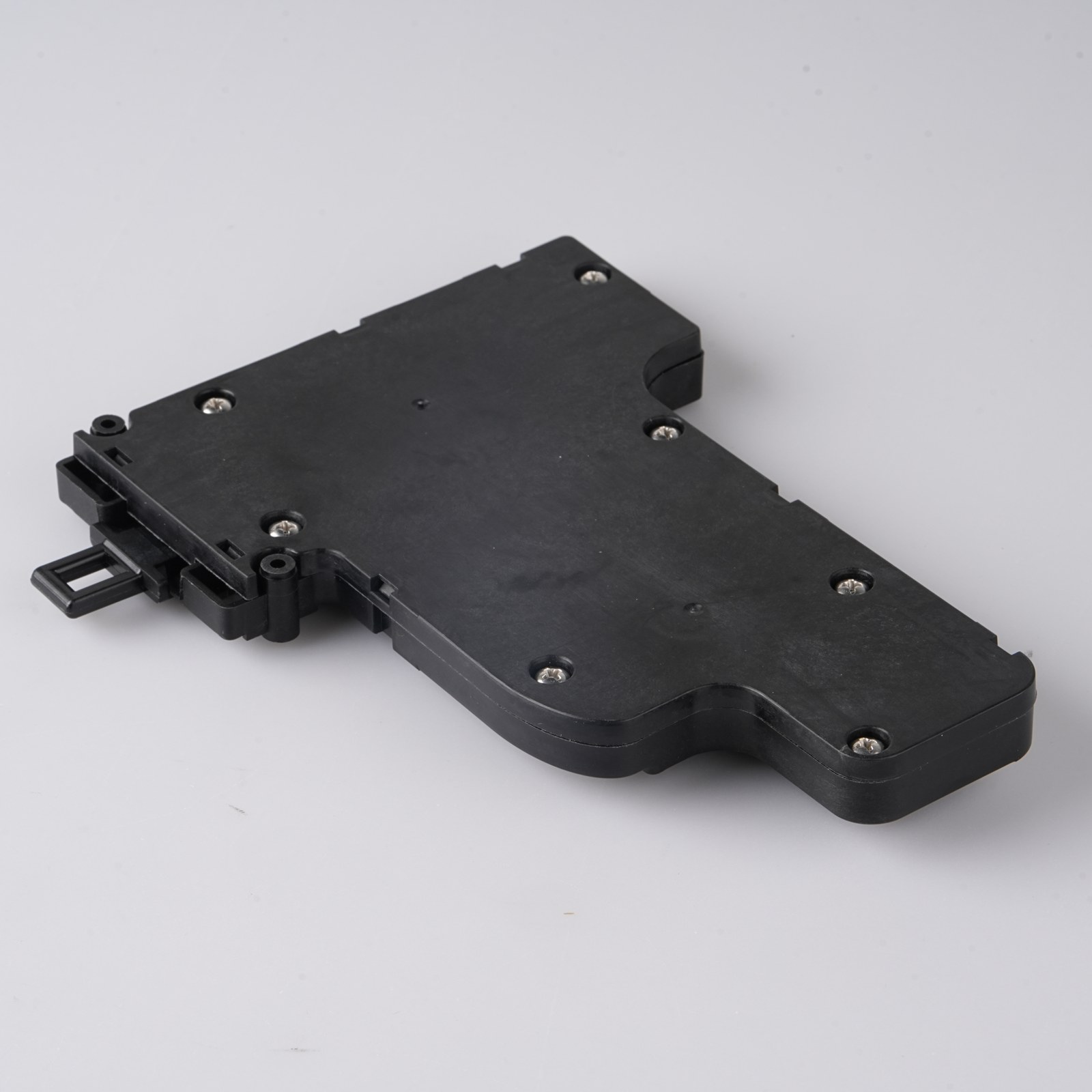

01.03DC safety-interlock platform
ApplicationSmart dishwasher platforms
Provides door locking and position control during wash programs, balancing travel speed, output force and structural integration.

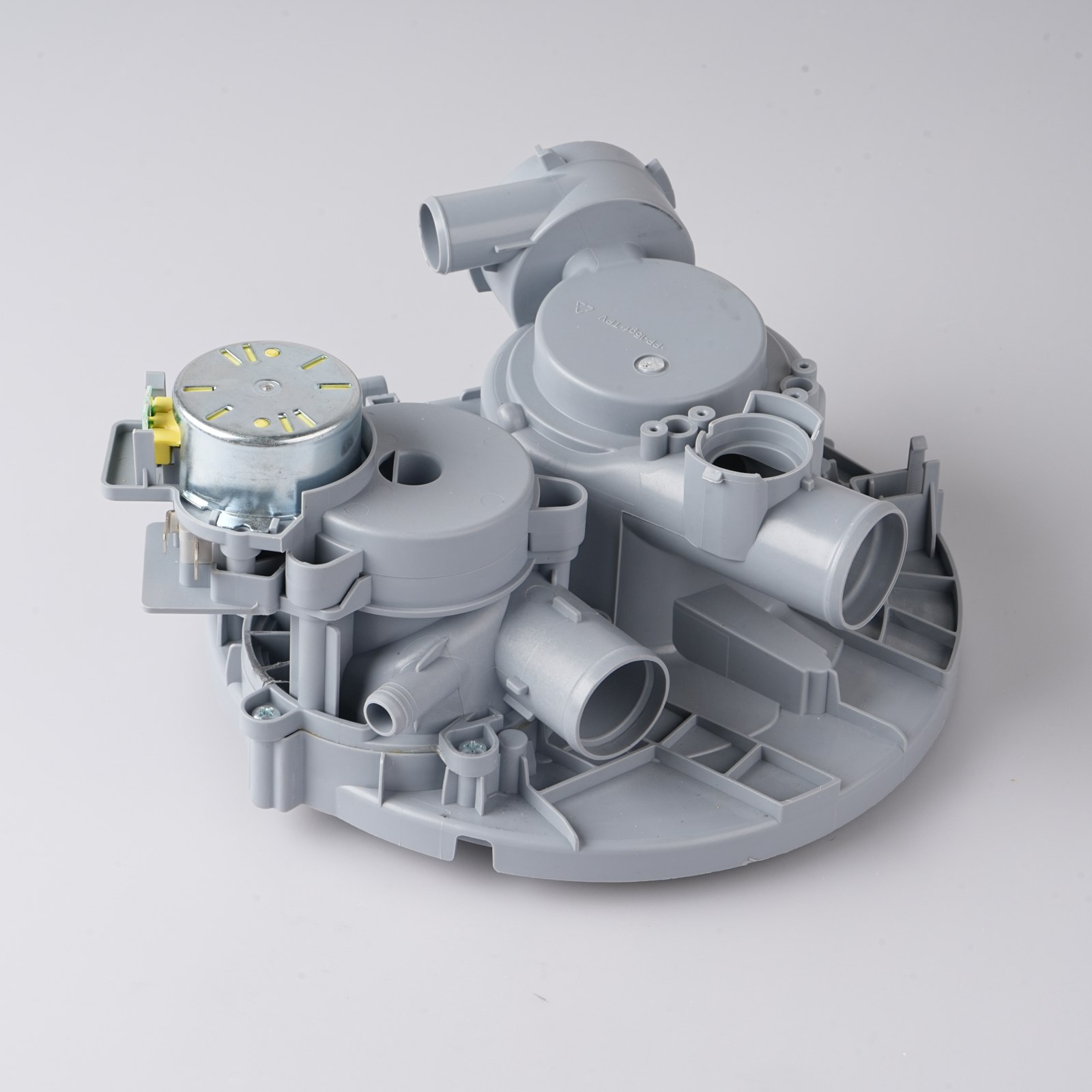

01.04Integrated hydraulic and synchronous-drive assembly
ApplicationIntegrated dishwasher sump assemblies
Combines the hydraulic housing, interfaces and synchronous drive in an appliance-ready assembly for coordinated water-path development.

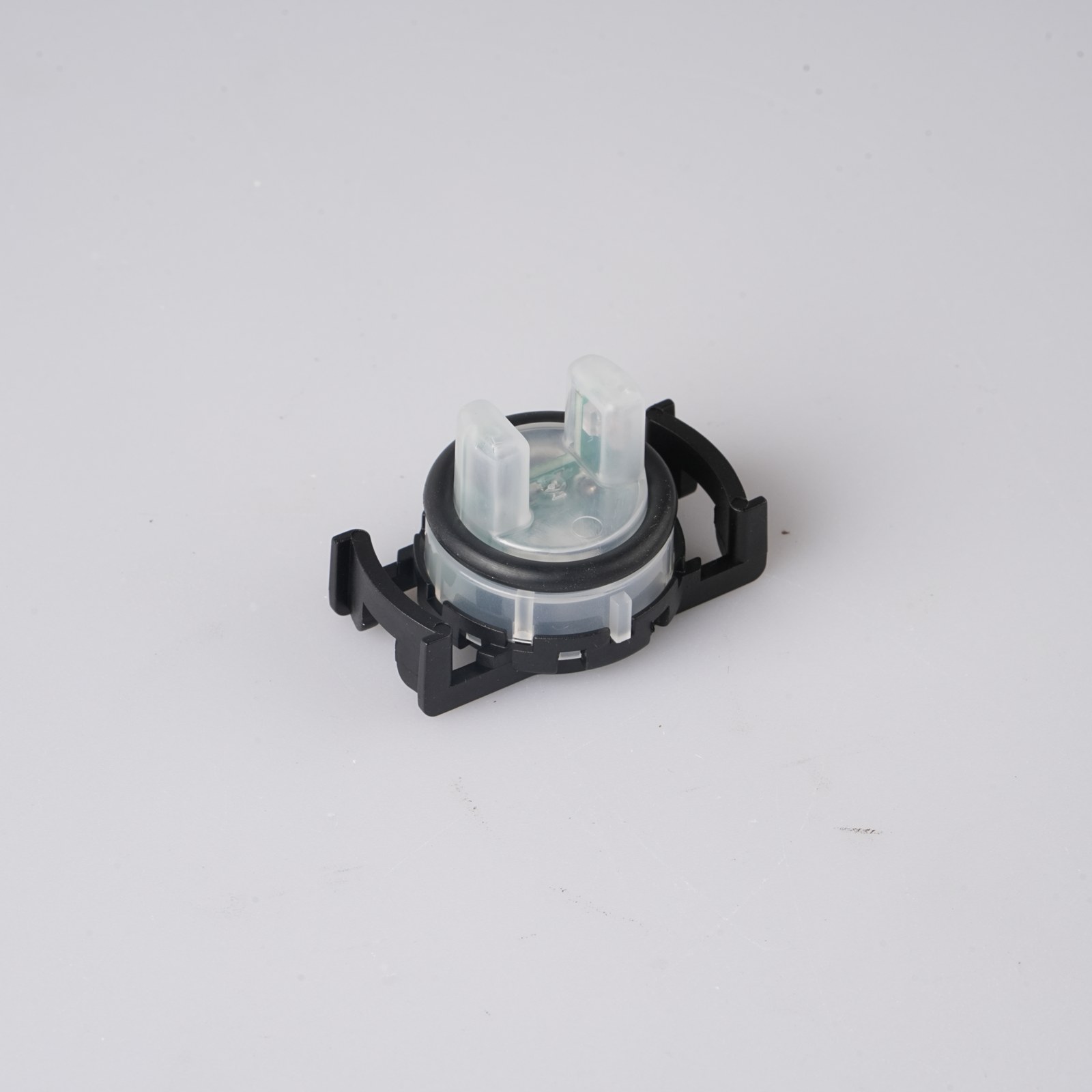

01.05Water-quality sensing module
ApplicationDishwashers
Detects wash-water condition to support optimized cycle duration, rinse strategy and water efficiency.

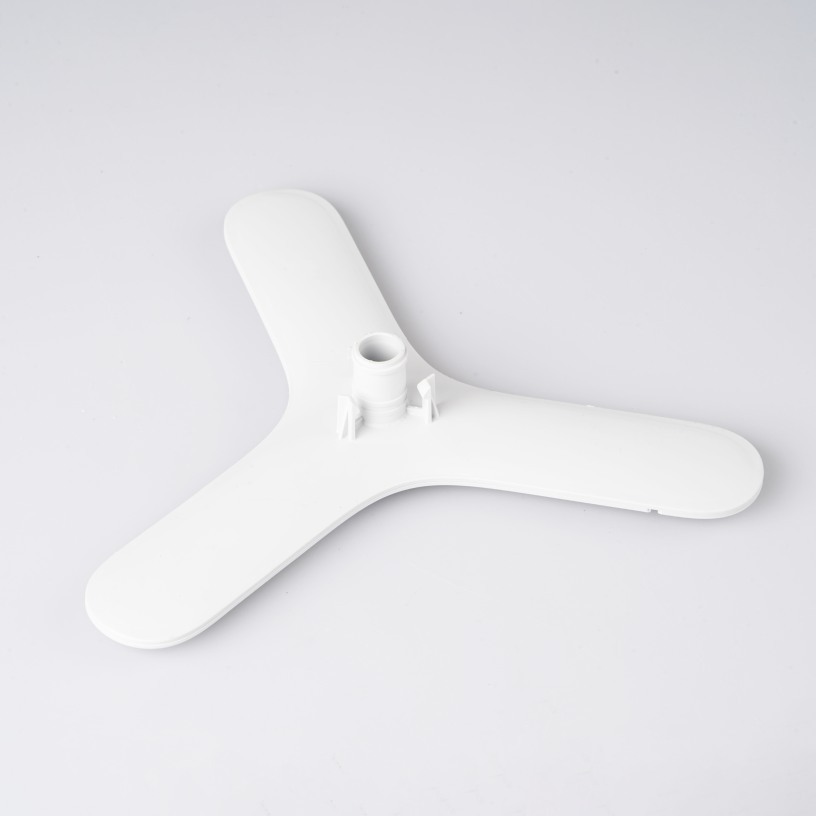

01.06Hot-plate welded spray assembly
ApplicationDishwasher spray systems
Hot-plate welded upper and lower shells form a sealed water channel; outlet jets rotate the arm for cleaning coverage.
WORKING TOGETHER
Share the model, electrical ratings, mounting needs and target market to define the component.
Agree sample specifications, test conditions and acceptance criteria.
Align drawing revisions, tooling and critical inspection points.
Confirm the production site, volume, traceability and delivery plan.
Start with the application. Co-engineer the next appliance component.
